How GitHub Advanced Security Solves Modern DevSecOps Challenges?

GitHub Advanced Security (GHAS) prevents leaked secrets, detects vulnerabilities, scans code for security flaws, protects the supply chain, and automates DevSecOps, all inside GitHub.

1. What is GHAS?

GitHub Advanced Security (GHAS) is a suite of built-in security capabilities designed to help software teams identify, prevent, and remediate security risks directly within GitHub.

It enhances the software development lifecycle by integrating automated security testing into the developer workflow, ensuring vulnerabilities are caught early and remediated quickly.

GHAS empowers organizations with advanced code analysis, secret exposure detection, and dependency vulnerability management – all without requiring additional external tools.

2. Why GHAS?

Modern applications rely heavily on open-source libraries, automation, cloud services, and complex CI/CD systems.

This increases the risk of:

  • Vulnerable code entering production
  • Hardcoded secrets getting exposed
  • Using outdated or vulnerable dependencies
  • Insecure GitHub Actions workflows

GHAS helps solve these problems by:

  • Providing shift-left security
  • Reducing reliance on multiple scattered tools
  • Offering seamless GitHub integration
  • Automating alerts, scanning, and remediation
  • Improving developer productivity

3. Features of GHAS

GHAS provides the following major capabilities:

Code Scanning (via CodeQL)

  • Performs static code analysis
  • Detects vulnerabilities like SQL injection, XSS
  • Runs via CLI, GitHub Actions, and API

Code Scanning PoC (CodeQL)

Understanding CodeQL

CodeQL is the static analysis engine used by GitHub Advanced Security to detect security vulnerabilities in codebases.

Developers can query code like a database, identifying patterns that could lead to:

  • SQL injection
  • XSS attacks
  • Hardcoded secrets
  • Lack of rate limiting
  • Command injection & more

CodeQL scanning can be executed: Locally with CodeQL CLI

  • On GitHub via CodeQL workflow
  • Through GitHub API
Objective of This PoC
  • Introduce vulnerable application code
  • Configure CodeQL workflow in GitHub
  • Trigger scan via push event
  • Validate alerts shown in Security → Code Scanning
  • Apply secure fixes
  • Confirm alerts marked resolved after mitigation
Repository Setup

Folder structure added:

codeql-poc/ └── app.js

Initial vulnerable code committed to repo.

Repo: https://github.com/himanshu0085/ghas-poc

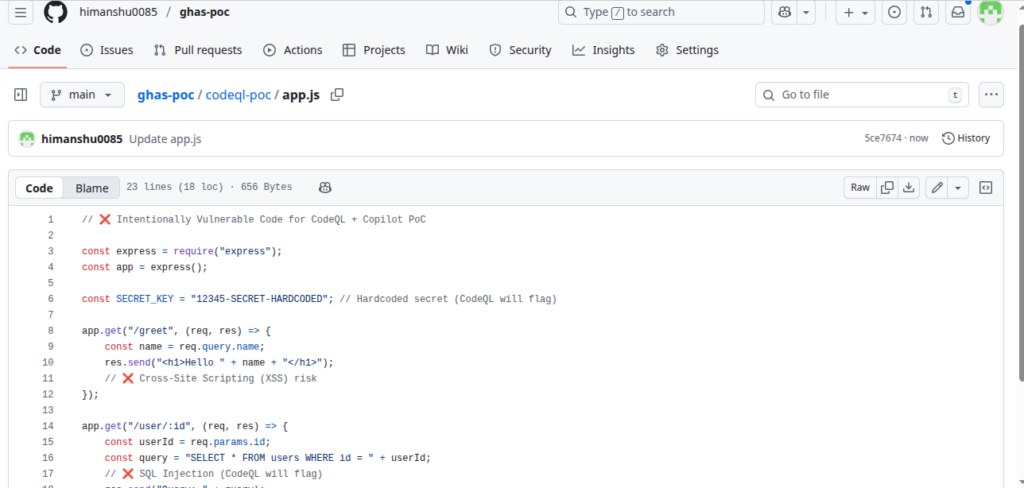

Introducing Vulnerabilities

codeql-poc/app.js — intentionally insecure:

  • SQL Injection
  • Cross-Site Scripting (XSS)
  • Hardcoded secret
  • Missing rate limiting

Enable CodeQL Code Scanning

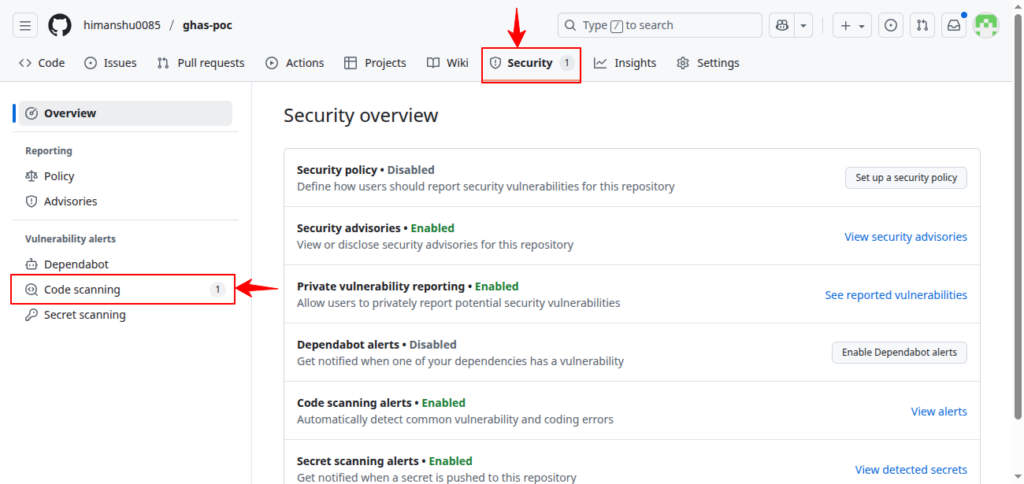

  1. Go to Security tab
  2. Under Code Scanning, Click Set up CodeQL
  3. Select Default Configuration
  4. Commit workflow file:

.github/workflows/codeql.yml

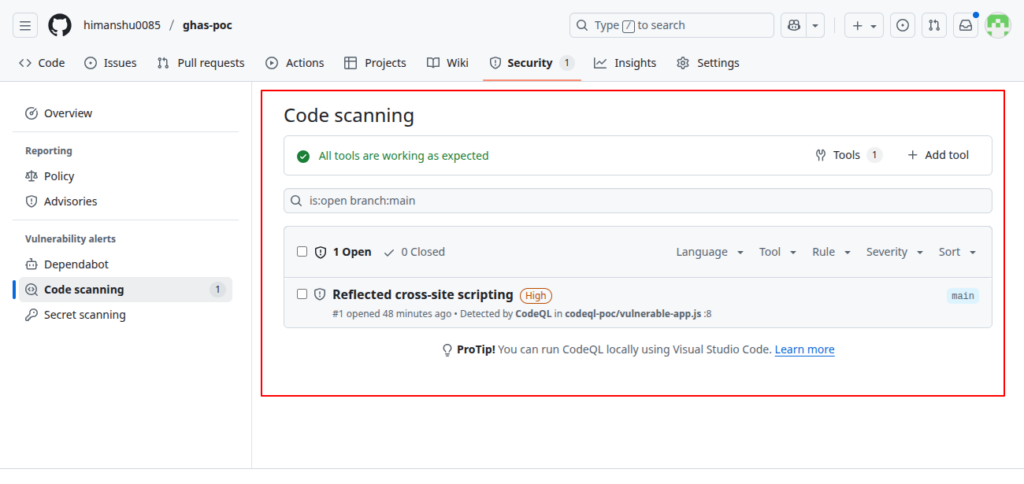

Expected Alerts

After workflow runs, CodeQL will report vulnerabilities:

Vulnerability Severity Expected Alert
SQL Injection High Yes
XSS Medium Yes
Hardcoded Secret High Yes
Missing rate limiting Medium Yes

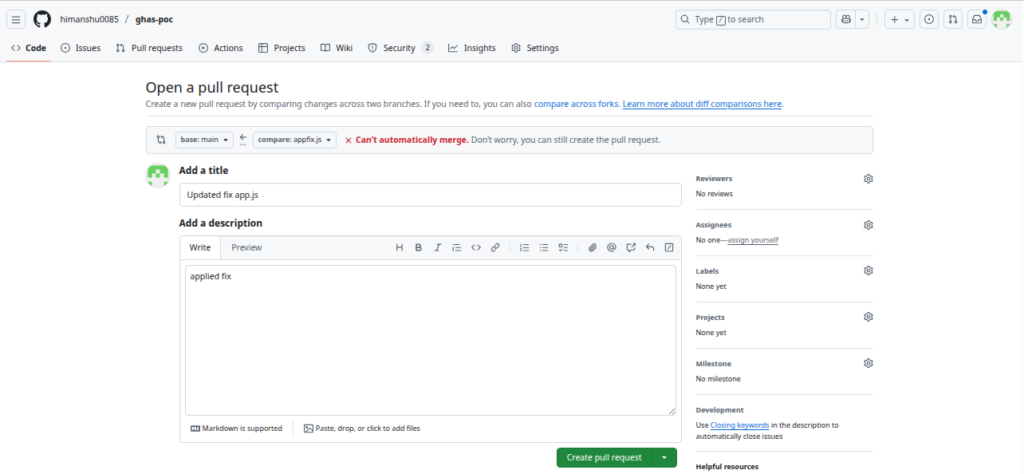

Fixing Vulnerabilities

A secure version was created:

codeql-poc/app-secure.js

Mitigations included:

Issue Fixed Method Used
SQL Injection Parameterized query
XSS HTML input escaping
Hardcoded Secret Environment variables
Missing Rate Limiting Added global rate limiter

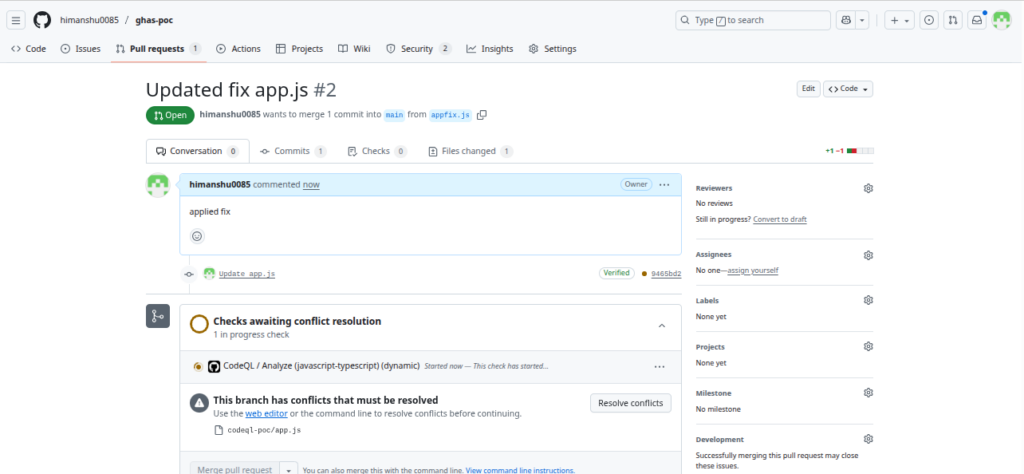

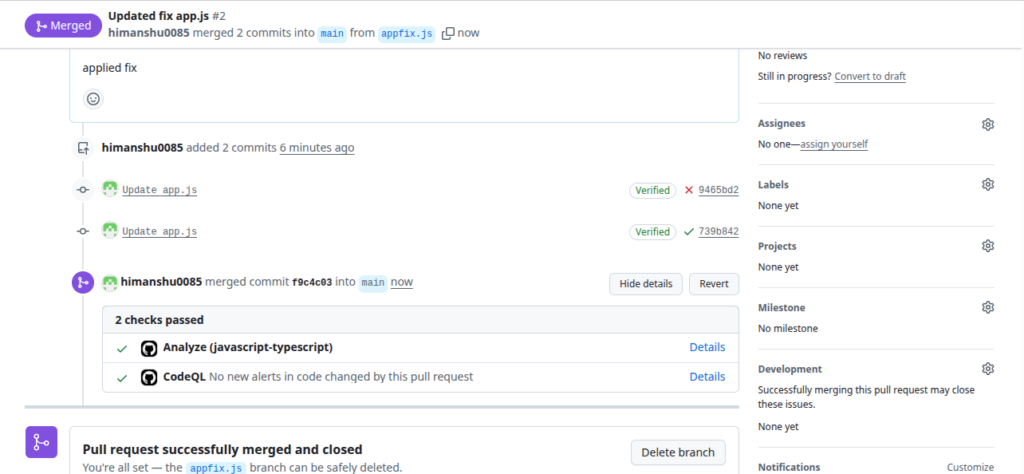

Alert Resolution

After remediation push:

  • CodeQL rescans automatically
  • Alerts update to Resolved or can be manually closed
  • Select valid closure reason (e.g., “Fixed”)
Best Practices
  • Enable branch protection rules to block merging vulnerable code
  • Use Copilot Security to auto-fix common vulnerabilities
  • Expand CodeQL queries for custom security rules
  • Include CodeQL scans in all CI/CD pipelines
  • Monitor Security dashboard for regression alerts

Secret Scanning

  • Real-time detection of exposed credentials
  • Flags secrets such as API keys, tokens, private keys
Secret Scanning PoC
Understanding Secret Scanning

Secret Scanning is a GitHub Advanced Security (GHAS) capability that automatically identifies exposed credentials inside a repository. GitHub scans:

  • Commits
  • Branches
  • Pull Requests
  • Issues
  • Wikis
  • Discussions

When a supported secret pattern is detected, GitHub generates an alert under:

  • Security → Secret Scanning

This PoC demonstrates adding sample secrets, pushing them to GitHub, observing the alerts, and documenting the workflow.

Objective of This PoC
  • Create a single file containing multiple credential patterns
  • Push the file to a public repository
  • Trigger secret-scanning alerts
  • Validate and record alert details through screenshots
  • Understand how alerts are reviewed and resolved
Repository Setup
  • Create a dedicated folder in your repository:
  • secret-scanning-poc/
  • Inside it, create one file:
  • secret-scanning.txt

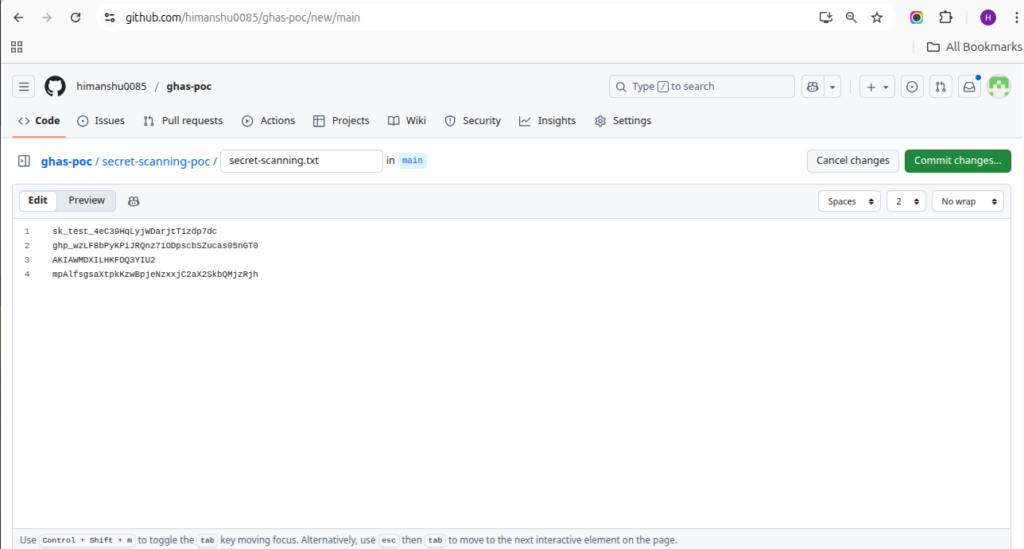

Content for secret-scanning.txt

Paste the following sample secrets into the file:

ghp_FAKEPAT1234567890abcdefghijklmnopqrstuvwxyz12
AKIA1234567890FAKEKEY
sk_test_4eC39HqLyjWDarjtT1zdp7dc

  • Commit and push the file to the main branch.
  • This file will be used to demonstrate GitHub’s Secret Scanning feature.

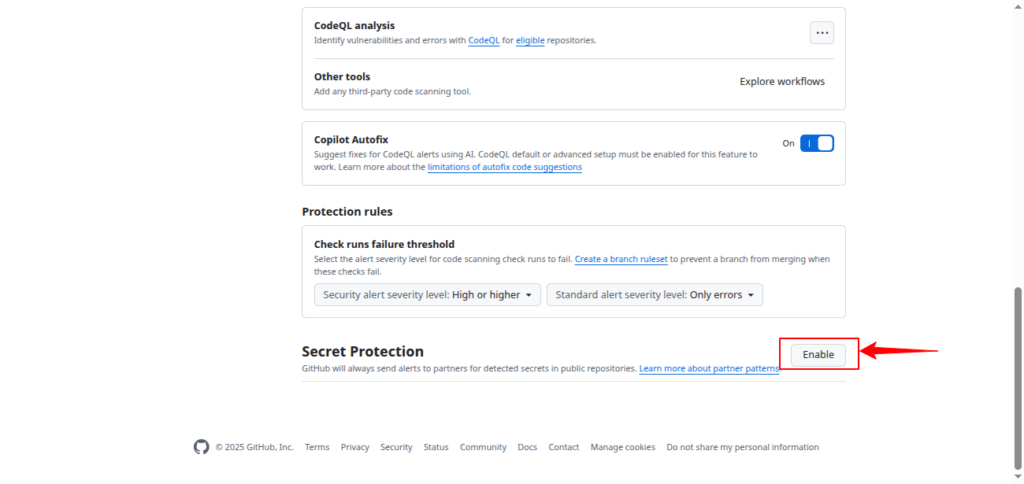

Enable Secret Scanning
  • Before detection begins, ensure Secret Scanning is enabled for the repository.

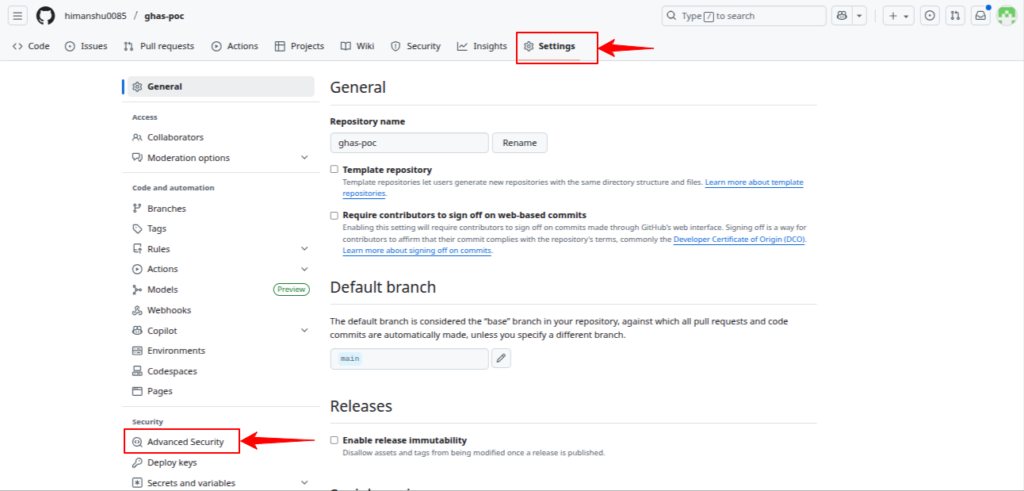

  1. Go to repository Settings
  2. Navigate to “Code security and analysis” / “Advanced Security”

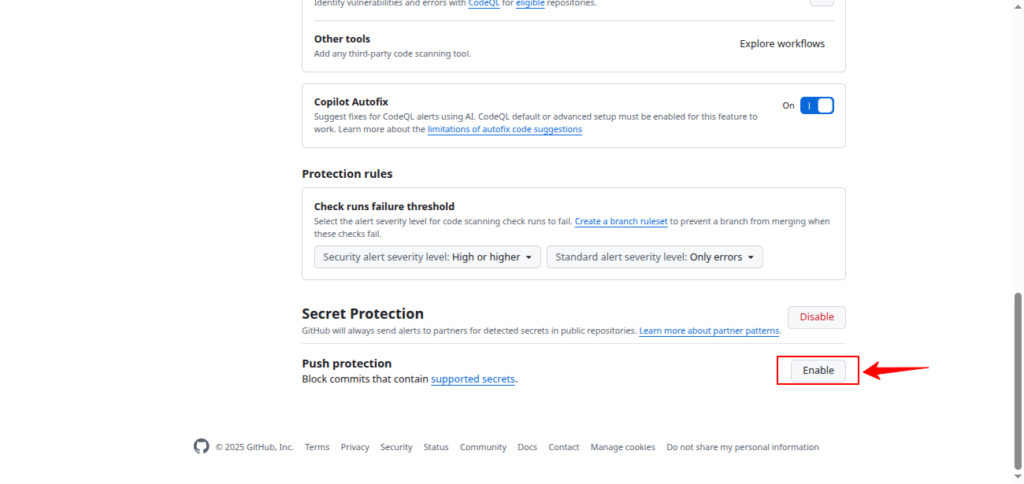

3. Under “Secret Protection”, enable:
  • Secret scanning

  • (Optional) Push protection

  • Once enabled, GitHub will automatically scan new commits for exposed secrets.
Expected Flow

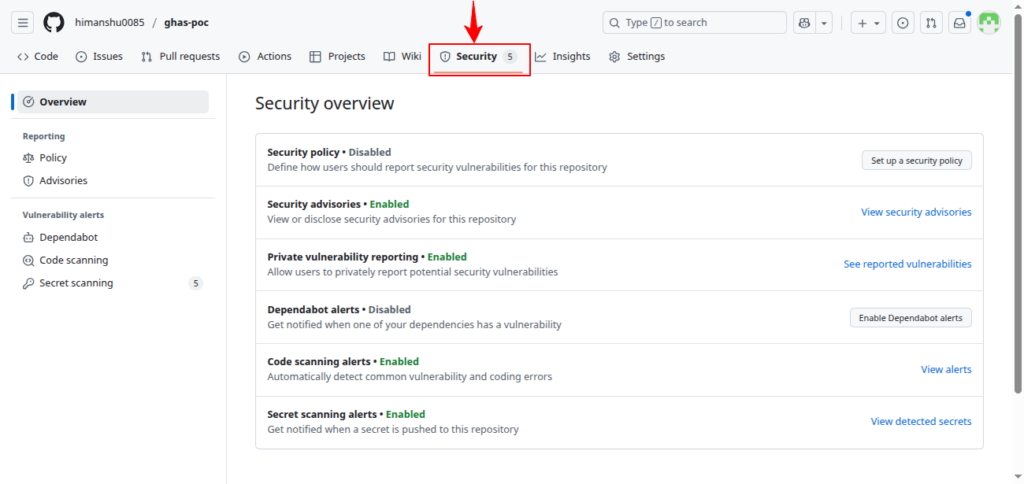

  1. After enabling the feature, go to the Security tab in your repository

  1. GitHub scans the newly pushed content

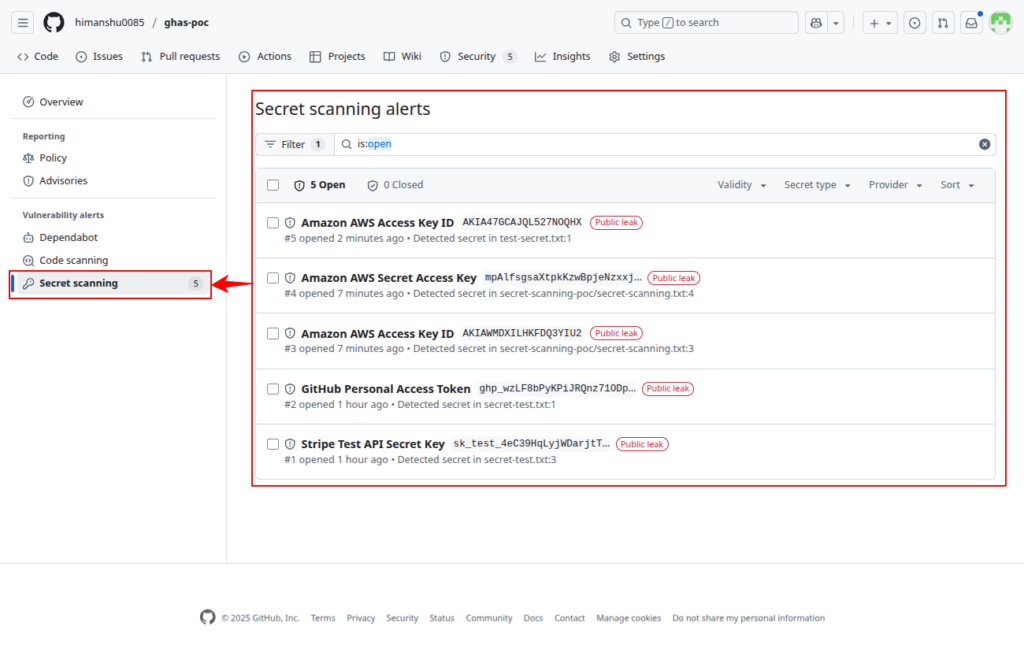

  2. Secret alerts appear under Security → Secret Scanning

  1. You will validate alerts and capture screenshots
  2. Alerts can then be marked as resolved, revoked, or dismissed

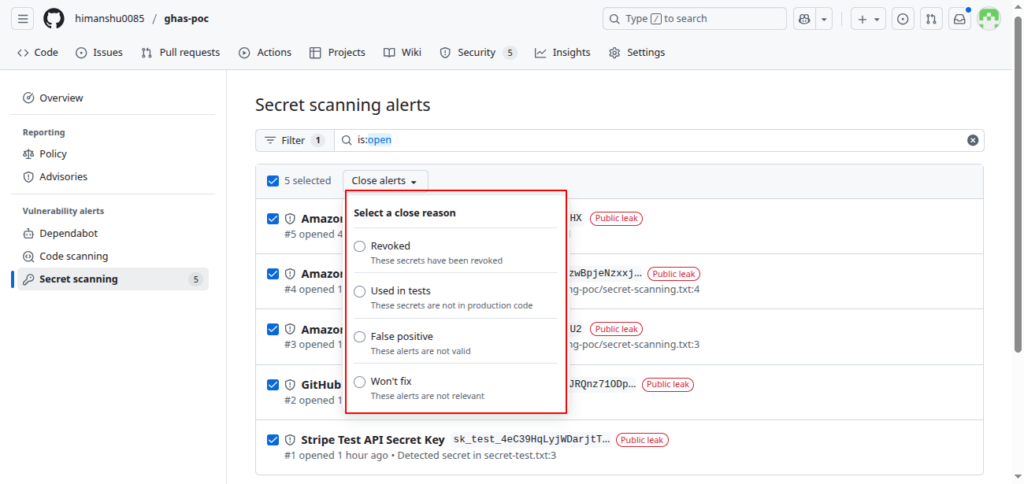

Closure Reasons Explained

GitHub requires selecting a valid reason before marking alerts as resolved:

  • Close Reason When to Use It What It Means
    Revoked When the leaked secret is invalidated or rotated Secret cannot be exploited anymore
    Used in tests Demo/sandbox/testing credentials only No real risk to production
    False positive Detection is incorrect Not actually a real secret
    Won’t fix Accepted risk in PoC/demo No remediation needed – but risky if used in production
Best Practices
  • Always rotate real secrets immediately
  • Use “Used in tests” only for intentionally fake/testing keys
  • Use “False positive” only when 100% sure
  • Avoid “Won’t fix” unless in a safe PoC environment
Dependency Management (Dependabot)
  • Detects vulnerable dependencies
  • Suggests or auto-generates PRs to update libraries
Dependabot (Dependency Scanning) PoC
What is Dependency Scanning?

GitHub Dependabot scans dependencies for known vulnerabilities using the GitHub Advisory Database.

It:

  • Detects security vulnerabilities (CVEs)
  • Alerts the developer in GitHub Security tab
  • Suggests or auto-creates PRs to upgrade packages
Objective of This PoC
  • Introduce vulnerable npm dependencies
  • Trigger Dependabot alerts
  • Apply recommended fixes via PR
  • Validate remediation in GitHub UI
Repository Setup
  • Create new folder inside repo:
  • ghas-poc/ └── dependabot-poc/ ├── package.json └── index.js
  • Initialize a basic Node.js project:

cd dependabot-poc
npm init -y

Add Vulnerable Dependencies

Edit – package.json:

  • {
    “name”: “dependabot-poc”,
    “version”: “1.0.0”,
    “dependencies”: {
    “lodash”: “4.17.19”,
    “axios”: “0.21.0”
    }
    }Create `index.js`:“`javascript
    console.log(“Dependabot scanning PoC running…”);
  • git add .
git commit -m "Added vulnerable dependencies for Dependabot PoC"
git push

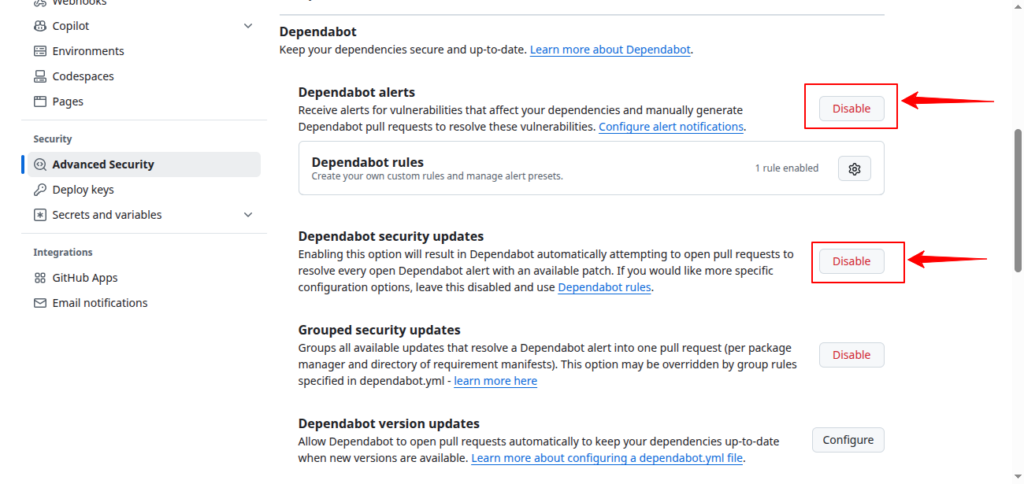

Enable Dependabot Security Updates

Go to: Settings → Code security and analysis

Enable:

  • Dependabot alerts
  • Dependabot security updates

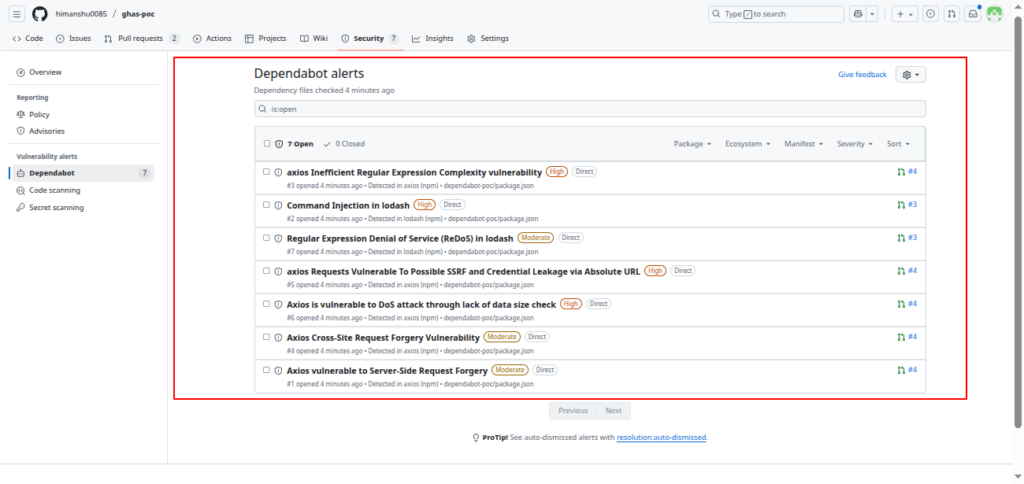

Expected Alerts

Dependabot will detect two vulnerabilities:

  • Package Version Issue Severity Fix
    lodash 4.17.19 Prototype Pollution ❌ High Upgrade to ≥ 4.17.21
    axios 0.21.0 SSRF Vulnerability ❌ High Upgrade to ≥ 0.21.1

View them in:

Security → Dependabot → Alerts

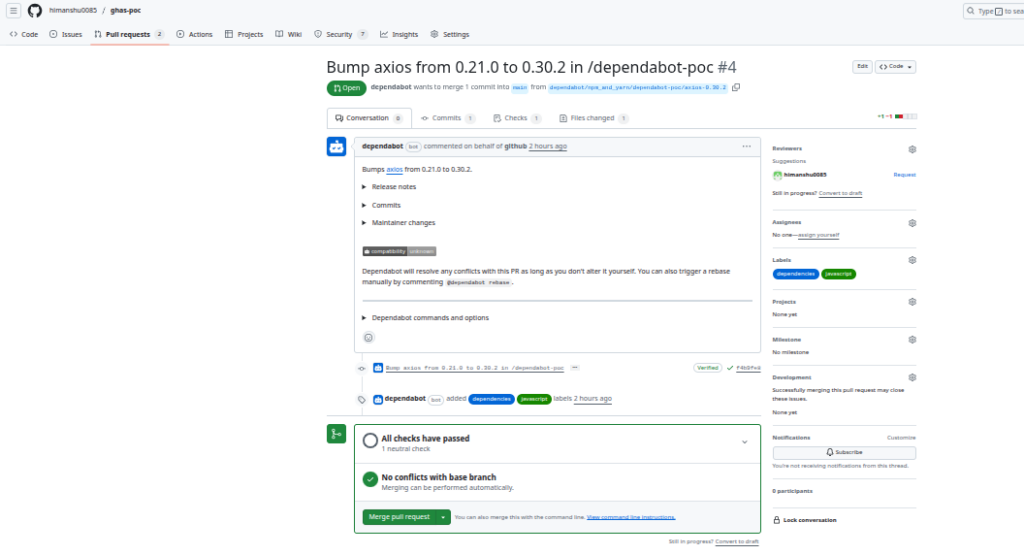

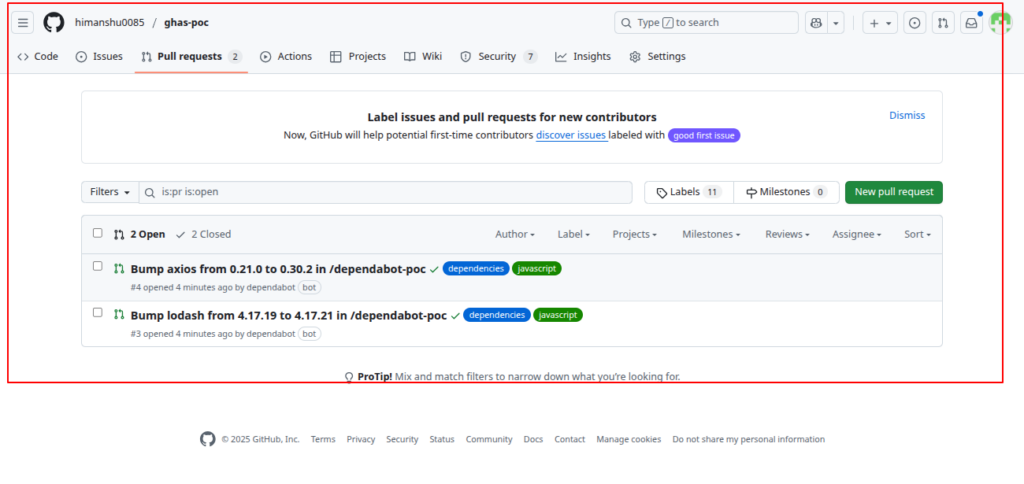

Apply Auto-Fix via Dependabot PR

Dependabot will automatically generate:

  • PR #1 – Upgrade lodash
  • PR #2 – Upgrade axios

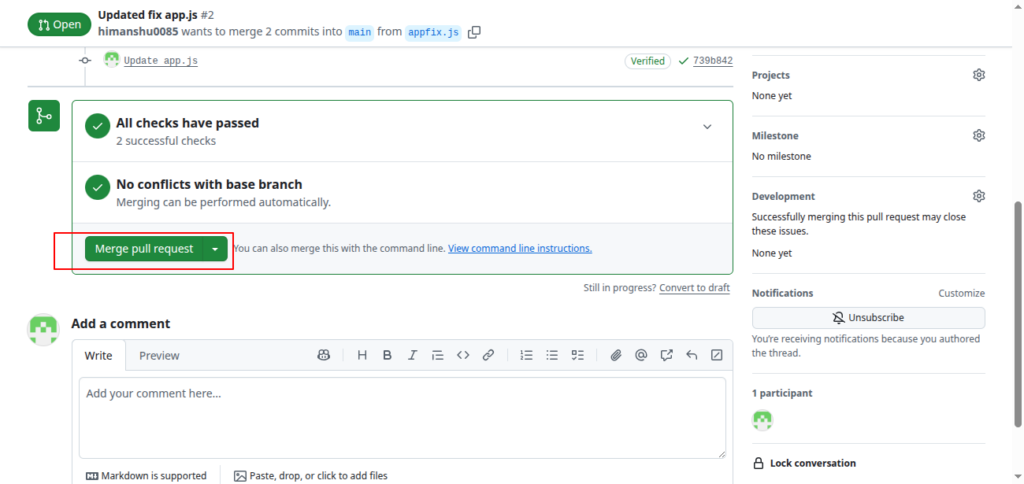

Your tasks:

  • Review both PRs
  • Merge to the main branch
  • Confirm GitHub checks pass

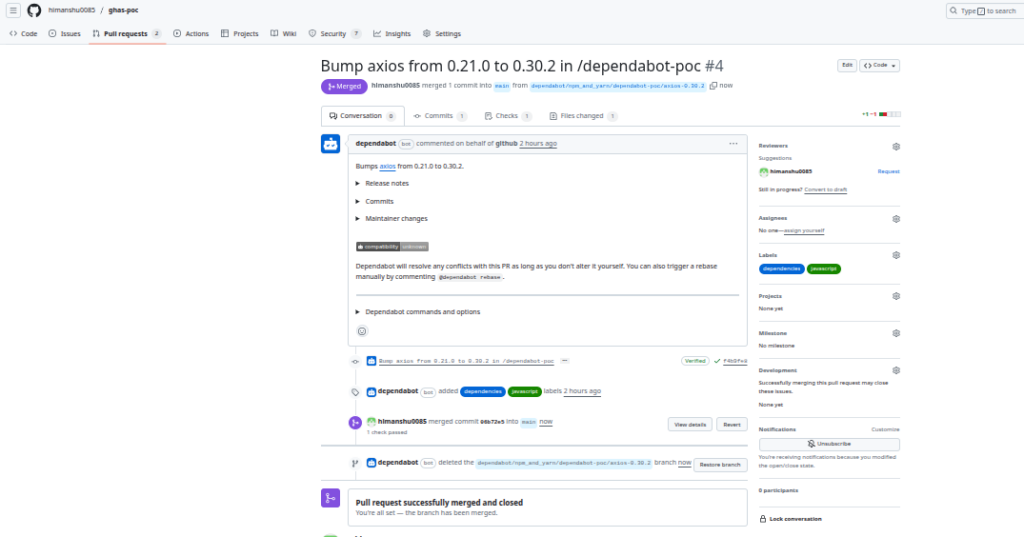

After merging:

  • Alerts marked Resolved
  • Dependency tree becomes secure

Best Practices
  • Best Practice Why
    Monitor alerts daily Faster remediation
    Enable auto-security updates Avoid outdated dependencies
    Apply least privilege to workflows Reduce dependency-based attacks
    Use version pinning Prevent unexpected breaking changes
    Combine with CodeQL + Secret Scanning Full SDLC protection
Conclusion
  • This PoC confirms:
  • Dependabot correctly identified vulnerable dependencies
  • Alerts were visible inside GitHub Security Dashboard
  • Auto-generated PRs patched vulnerabilities
  • The application security posture improved

4. Components of GHAS

  • Component Description Key Capabilities
    Code Scanning (CodeQL) Static code analysis using semantic queries Finds vulnerabilities, supports multiple languages
    Secret Scanning Detects credentials committed to code Alerts developers, supports custom patterns
    Dependency Management (Dependabot) Scans for vulnerable libraries Creates automated PRs for fixes

5. Conclusion

GitHub Advanced Security (GHAS) provides a powerful, developer-friendly security solution natively integrated into GitHub.

By combining CodeQL scanning, secret detection, and dependency management, GHAS enables teams to secure their codebases efficiently and proactively.

  • GHAS improves:
  • Code quality
  • Security posture
  • Developer productivity
  • Compliance readiness

It helps organizations implement true shift-left security and reduces dependency on external tools.
