Watching cluster sharding and failover management is as gripping as visualizing a robotic machinery work.
My last blog on Redis Cluster was primarily focussed on its related concepts and requirements. I would highly recommend to go through the concepts first to have better understanding.
Here, I will straight forward move to its setup along with the behaviour of cluster when I intentionally turned down one Redis service on one of the node.
Let’s start from the scratch.
Redis Setup
Here, I will follow the approach of a 3-node Redis Cluster with Redis v5.0 on all the three CentOS 7.x nodes.
Setup Epel Repo
wget http://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
rpm -ivh epel-release-latest-7.noarch.rpm
Setup Remi Repo
yum install http://rpms.remirepo.net/enterprise/remi-release-7.rpm
yum --enablerepo=remi install redis
redis-server --version
Redis server v=5.0.5 sha=00000000:0 malloc=jemalloc-5.1.0 bits=64 build=619d60bfb0a92c36
3-Node Cluster Prerequisites

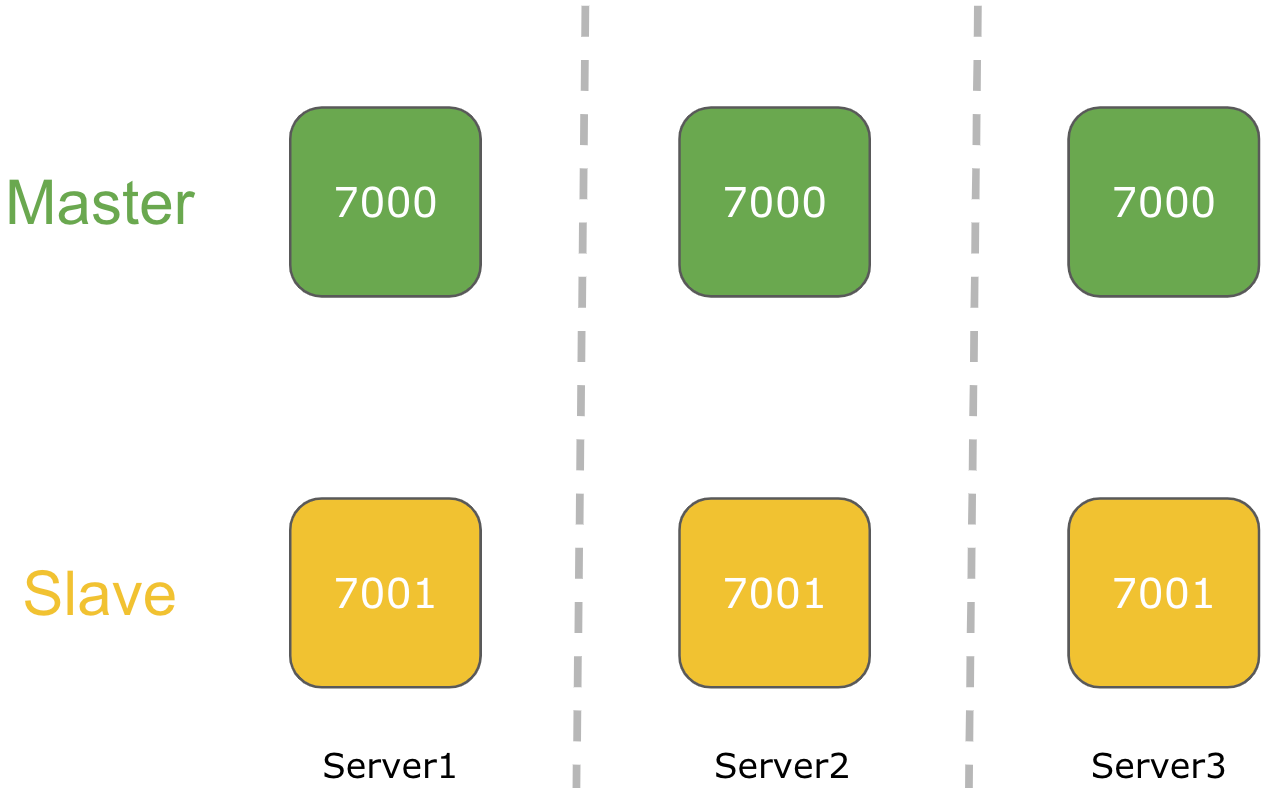

While setting up Redis cluster on 3 nodes, I will be following the strategy of having 3 master nodes and 3 slave nodes with one master and one slave running on each node serving redis at different ports. As shown in the diagram Redis service is running on Port 7000 and Port 7001

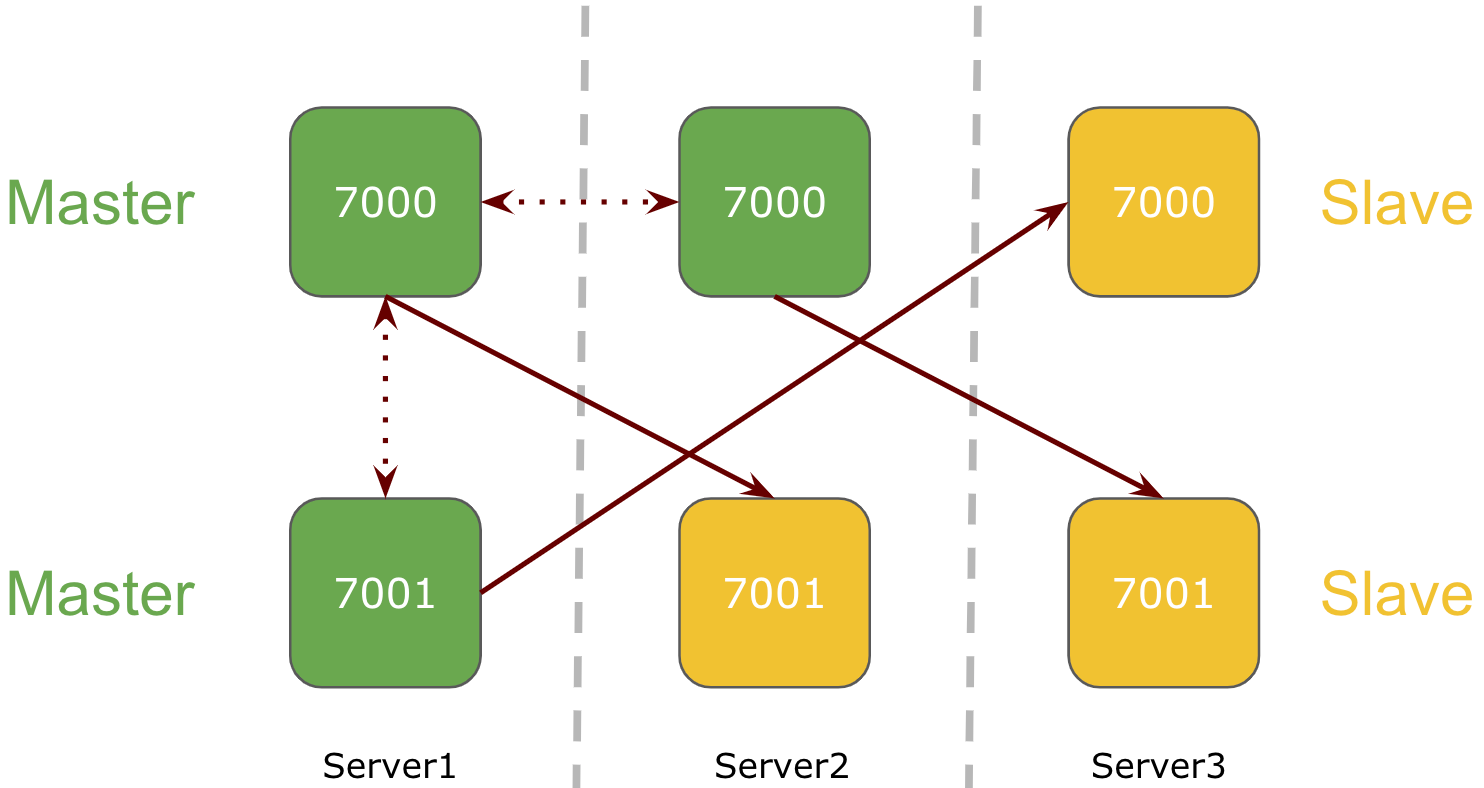

- 7000 port will serve Redis Master
- 7001 port will serve Redis Slave
Directory Structure
We need to design the directory structure to server both redis configurations.
tree /etc/redis
/etc/redis `-- cluster |-- 7000 | `-- redis_7000.conf `-- 7001 `-- redis_7001.conf
Redis Configuration
Configuration file for Redis service 1
cat /etc/redis/cluster/7000/redis_7000.conf
port 7000 dir /var/lib/redis/7000/ appendonly yes protected-mode no cluster-enabled yes cluster-node-timeout 5000 cluster-config-file /etc/redis/cluster/7000/nodes_7000.conf pidfile /var/run/redis_7000.pid
Configuration file for Redis service 2
cat /etc/redis/cluster/7001/redis_7001.conf
port 7001 dir /var/lib/redis/7001 appendonly yes protected-mode no cluster-enabled yes cluster-node-timeout 5000 cluster-config-file /etc/redis/cluster/7001/nodes_7001.conf pidfile /var/run/redis_7001.pid
Redis Service File
As we are managing multiple service on a single instance, we need to update service file for easier management of redis services.
Service management file for Redis service 1
cat /etc/systemd/system/redis_7000.service
[Unit] Description=Redis persistent key-value database After=network.target [Service] ExecStart=/usr/bin/redis-server /etc/redis/cluster/7000/redis_7000.conf --supervised systemd ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7000 shutdown Type=notify User=redis Group=redis RuntimeDirectory=redis RuntimeDirectoryMode=0755 LimitNOFILE=65535 [Install] WantedBy=multi-user.target
Service management file for Redis service 2
cat /etc/systemd/system/redis_7001.service
[Unit] Description=Redis persistent key-value database After=network.target [Service] ExecStart=/usr/bin/redis-server /etc/redis/cluster/7001/redis_7001.conf --supervised systemd ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7001 shutdown Type=notify User=redis Group=root RuntimeDirectory=/etc/redis/cluster/7001 RuntimeDirectoryMode=0755 LimitNOFILE=65535 [Install] WantedBy=multi-user.target
Redis Service Status
Master Service
systemctl status redis_7000.service
● redis_7000.service - Redis persistent key-value database Loaded: loaded (/etc/systemd/system/redis_7000.service; enabled; vendor preset: disabled) Active: active (running) since Wed 2019-09-25 08:14:15 UTC; 30min ago Process: 2902 ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7000 shutdown (code=exited, status=0/SUCCESS) Main PID: 2917 (redis-server) CGroup: /system.slice/redis_7000.service └─2917 /usr/bin/redis-server *:7000 [cluster] systemd[1]: Starting Redis persistent key-value database... redis-server[2917]: 2917:C 25 Sep 2019 08:14:15.752 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo redis-server[2917]: 2917:C 25 Sep 2019 08:14:15.752 # Redis version=5.0.5, bits=64, commit=00000000, modified=0, pid=2917, just started redis-server[2917]: 2917:C 25 Sep 2019 08:14:15.752 # Configuration loaded redis-server[2917]: 2917:C 25 Sep 2019 08:14:15.752 * supervised by systemd, will signal readiness systemd[1]: Started Redis persistent key-value database. redis-server[2917]: 2917:M 25 Sep 2019 08:14:15.754 * No cluster configuration found, I'm ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 redis-server[2917]: 2917:M 25 Sep 2019 08:14:15.756 * Running mode=cluster, port=7000. redis-server[2917]: 2917:M 25 Sep 2019 08:14:15.756 # Server initialized redis-server[2917]: 2917:M 25 Sep 2019 08:14:15.756 * Ready to accept connections
Slave Service
systemctl status redis_7001.service
● redis_7001.service - Redis persistent key-value database Loaded: loaded (/etc/systemd/system/redis_7001.service; enabled; vendor preset: disabled) Active: active (running) since Wed 2019-09-25 08:14:15 UTC; 30min ago Process: 2902 ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7001 shutdown (code=exited, status=0/SUCCESS) Main PID: 2919 (redis-server) CGroup: /system.slice/redis_7001.service └─2919 /usr/bin/redis-server *:7001 [cluster] systemd[1]: Starting Redis persistent key-value database... redis-server[2919]: 2917:C 25 Sep 2019 08:14:15.752 # oO0OoO0OoO0Oo Redis is starting oO0OoO0OoO0Oo redis-server[2919]: 2917:C 25 Sep 2019 08:14:15.752 # Redis version=5.0.5, bits=64, commit=00000000, modified=0, pid=2917, just started redis-server[2919]: 2917:C 25 Sep 2019 08:14:15.752 # Configuration loaded redis-server[2919]: 2917:C 25 Sep 2019 08:14:15.752 * supervised by systemd, will signal readiness systemd[1]: Started Redis persistent key-value database. redis-server[2919]: 2917:M 25 Sep 2019 08:14:15.754 * No cluster configuration found, I'm ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 redis-server[2919]: 2917:M 25 Sep 2019 08:14:15.756 * Running mode=cluster, port=7001. redis-server[2919]: 2917:M 25 Sep 2019 08:14:15.756 # Server initialized redis-server[2919]: 2917:M 25 Sep 2019 08:14:15.756 * Ready to accept connections
Redis Cluster Setup
Redis itself provides cli tool to setup cluster.
In the current 3 node scenario, I opt 7000 port on all node to serve Redis master and 7001 port to serve Redis slave.
redis-cli --cluster create 172.19.33.7:7000 172.19.42.44:7000 172.19.45.201:7000 172.19.33.7:7001 172.19.42.44:7001 172.19.45.201:7001 --cluster-replicas 1
The first 3 address will be the master and the next 3 address will be the slaves. It will be a cross node replication, say, Slave of any Mater will reside on a different node and the cluster-replicas define the replication factor, i.e each master will have 1 slave.
>>> Performing hash slots allocation on 6 nodes... Master[0] -> Slots 0 - 5460 Master[1] -> Slots 5461 - 10922 Master[2] -> Slots 10923 - 16383 Adding replica 172.19.42.44:7001 to 172.19.33.7:7000 Adding replica 172.19.45.201:7001 to 172.19.42.44:7000 Adding replica 172.19.33.7:7001 to 172.19.45.201:7000 M: ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 172.19.33.7:7000 slots:[0-5460] (5461 slots) master M: 314038a48bda3224bad21c3357dbff8305735d72 172.19.42.44:7000 slots:[5461-10922] (5462 slots) master M: 19a2c81b7f489bec35eed474ae8e1ad787327db6 172.19.45.201:7000 slots:[10923-16383] (5461 slots) master S: 896b2a7195455787b5d8a50966f1034c269c0259 172.19.33.7:7001 replicates 19a2c81b7f489bec35eed474ae8e1ad787327db6 S: 89206df4f41465bce81f44e25e5fdfa8566424b8 172.19.42.44:7001 replicates ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 S: 20ab4b30f3d6d25045909c6c33ab70feb635061c 172.19.45.201:7001 replicates 314038a48bda3224bad21c3357dbff8305735d72 Can I set the above configuration? (type 'yes' to accept):
A dry run will showcase the cluster setup and ask for confirmation.
Can I set the above configuration? (type 'yes' to accept): yes >>> Nodes configuration updated >>> Assign a different config epoch to each node >>> Sending CLUSTER MEET messages to join the cluster Waiting for the cluster to join .. >>> Performing Cluster Check (using node 172.19.33.7:7000) M: ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 172.19.33.7:7000 slots:[0-5460] (5461 slots) master 1 additional replica(s) S: 20ab4b30f3d6d25045909c6c33ab70feb635061c 172.19.45.201:7001 slots: (0 slots) slave replicates 314038a48bda3224bad21c3357dbff8305735d72 M: 314038a48bda3224bad21c3357dbff8305735d72 172.19.42.44:7000 slots:[5461-10922] (5462 slots) master 1 additional replica(s) M: 19a2c81b7f489bec35eed474ae8e1ad787327db6 172.19.45.201:7000 slots:[10923-16383] (5461 slots) master 1 additional replica(s) S: 89206df4f41465bce81f44e25e5fdfa8566424b8 172.19.42.44:7001 slots: (0 slots) slave replicates ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 S: 896b2a7195455787b5d8a50966f1034c269c0259 172.19.33.7:7001 slots: (0 slots) slave replicates 19a2c81b7f489bec35eed474ae8e1ad787327db6 [OK] All nodes agree about slots configuration. >>> Check for open slots... >>> Check slots coverage... [OK] All 16384 slots covered.
Check Cluster Status
Connect to any of the cluster node to check the status of cluster.
redis-cli -c -h 172.19.33.7 -p 7000
172.19.33.7:7000> cluster nodes
20ab4b30f3d6d25045909c6c33ab70feb635061c 172.19.45.201:7001@17001 slave 314038a48bda3224bad21c3357dbff8305735d72 0 1569402961000 6 connected
314038a48bda3224bad21c3357dbff8305735d72 172.19.42.44:7000@17000 master - 0 1569402961543 2 connected 5461-10922
19a2c81b7f489bec35eed474ae8e1ad787327db6 172.19.45.201:7000@17000 master - 0 1569402960538 3 connected 10923-16383
ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 172.19.33.7:7000@17000 myself,master - 0 1569402959000 1 connected 0-5460
89206df4f41465bce81f44e25e5fdfa8566424b8 172.19.42.44:7001@17001 slave ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 0 1569402960000 5 connected
896b2a7195455787b5d8a50966f1034c269c0259 172.19.33.7:7001@17001 slave 19a2c81b7f489bec35eed474ae8e1ad787327db6 0 1569402959936 4 connected

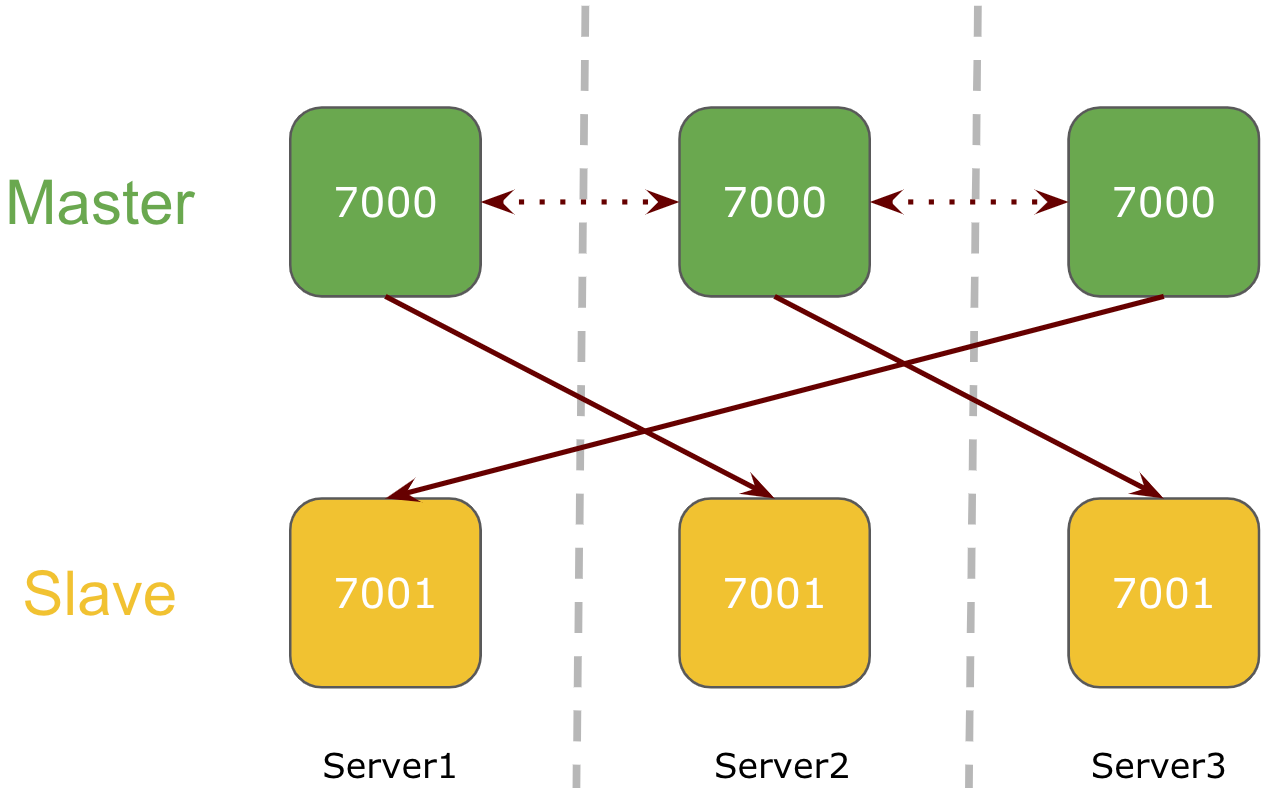

Redis cluster itself manages the cross node replication, as seen in the above screen, 172.19.42.44:7000 master is associated with 172.19.45.201:7001 slave.
Data Sharding
There are 16384 slots. These slots are divided by the number of servers.
If there are 3 servers; 1, 2 and 3 then
- Server 1 contains hash slots from 0 to 5500.
- Server 2 contains hash slots from 5501 to 11000.
- Server 3 contains hash slots from 11001 to 16383.
redis-cli -c -h 172.19.33.7 -p 7000
172.19.33.7:7000> set a 1 -> Redirected to slot [15495] located at 172.19.45.201:7000 OK 172.19.45.201:7000> set b 2 -> Redirected to slot [3300] located at 172.19.33.7:7000 OK 172.19.33.7:7000> set c 3 -> Redirected to slot [7365] located at 172.19.42.44:7000 OK 172.19.42.44:7000> set d 4 -> Redirected to slot [11298] located at 172.19.45.201:7000 OK 172.19.45.201:7000> get b -> Redirected to slot [3300] located at 172.19.33.7:7000 "2" 172.19.33.7:7000> get a -> Redirected to slot [15495] located at 172.19.45.201:7000 "1" 172.19.45.201:7000> get c -> Redirected to slot [7365] located at 172.19.42.44:7000 "3" 172.19.42.44:7000> get d -> Redirected to slot [11298] located at 172.19.45.201:7000 "4" 172.19.45.201:7000>
Redis Cluster Failover
Stop Master Service
Let’s stop the Redis master service on Server 3.
systemctl stop redis_7000.service systemctl status redis_7000.service
● redis_7000.service - Redis persistent key-value database Loaded: loaded (/etc/systemd/system/redis_7000.service; enabled; vendor preset: disabled) Active: inactive (dead) since Wed 2019-09-25 09:32:37 UTC; 23s ago Process: 3232 ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7000 shutdown (code=exited, status=0/SUCCESS) Process: 2892 ExecStart=/usr/bin/redis-server /etc/redis/cluster/7000/redis_7000.conf --supervised systemd (code=exited, status=0/SUCCESS) Main PID: 2892 (code=exited, status=0/SUCCESS)
Cluster State (Failover)

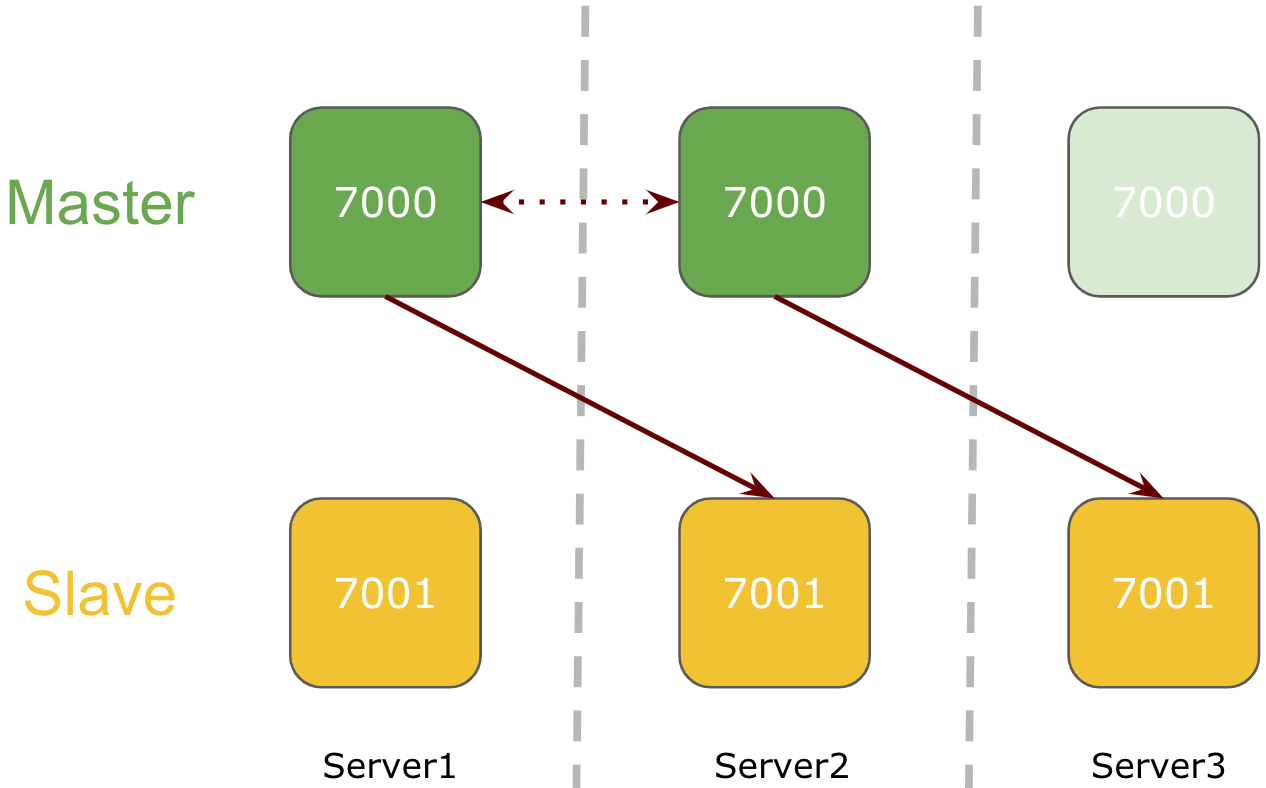

While checking the cluster status, Redis master service running on server 3 at port 7000 is shown fail and disconnected.

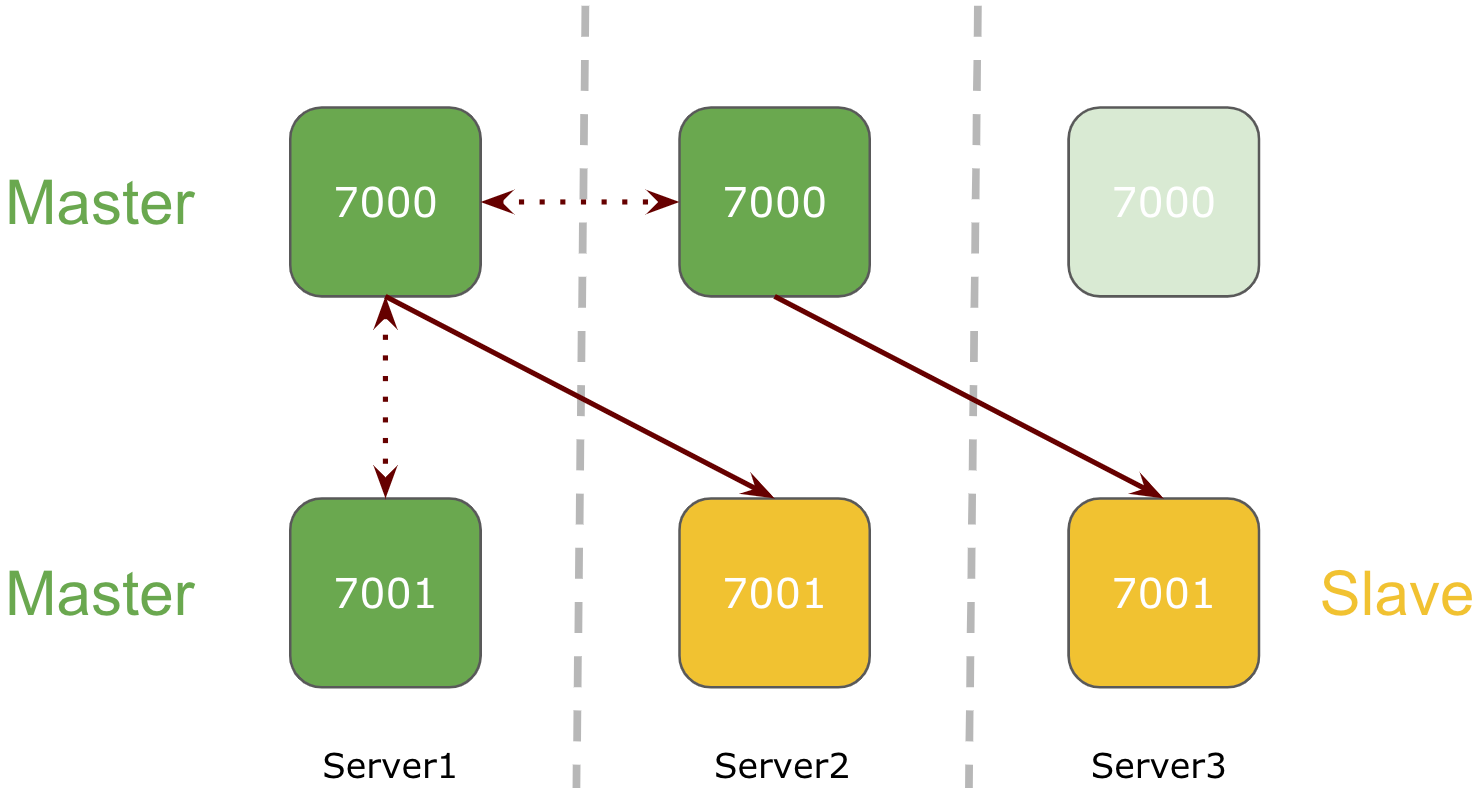

At the same moment its respective slave gets promoted to master which is running on port 7001 on server 1.
redis-cli -c -h 172.19.33.7 -p 7000
172.19.45.201:7000> CLUSTER NODES 314038a48bda3224bad21c3357dbff8305735d72 172.19.42.44:7000@17000 master,fail - 1569403957138 1569403956000 2 disconnected ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 172.19.33.7:7000@17000 master - 0 1569404037252 1 connected 0-5460 896b2a7195455787b5d8a50966f1034c269c0259 172.19.33.7:7001@17001 slave 19a2c81b7f489bec35eed474ae8e1ad787327db6 0 1569404036248 4 connected 89206df4f41465bce81f44e25e5fdfa8566424b8 172.19.42.44:7001@17001 slave ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 0 1569404036752 5 connected 20ab4b30f3d6d25045909c6c33ab70feb635061c 172.19.45.201:7001@17001 master - 0 1569404036000 7 connected 5461-10922 19a2c81b7f489bec35eed474ae8e1ad787327db6 172.19.45.201:7000@17000 myself,master - 0 1569404035000 3 connected 10923-16383
Restarting Stopped Redis
Now we will check the behaviour of cluster once we fix or restart the redis service that we intentionally turned down earlier.
systemctl start redis_7000.service systemctl status redis_7000.service
● redis_7000.service - Redis persistent key-value database Loaded: loaded (/etc/systemd/system/redis_7000.service; enabled; vendor preset: disabled) Active: active (running) since Wed 2019-09-25 09:35:12 UTC; 8s ago Process: 3232 ExecStop=/bin/redis-cli -h 127.0.0.1 -p 7000 shutdown (code=exited, status=0/SUCCESS) Main PID: 3241 (redis-server) CGroup: /system.slice/redis_7000.service └─3241 /usr/bin/redis-server *:7000 [cluster]
Cluster State (Recovery)
Finally, all redis service are back in running state. The master service that we turned down and restarted has now become slave to its promoted master.
redis-cli -c -h 172.19.33.7 -p 7000
172.19.45.201:7000> CLUSTER NODES 314038a48bda3224bad21c3357dbff8305735d72 172.19.42.44:7000@17000 slave 20ab4b30f3d6d25045909c6c33ab70feb635061c 0 1569404162565 7 connected ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 172.19.33.7:7000@17000 master - 0 1569404162000 1 connected 0-5460 896b2a7195455787b5d8a50966f1034c269c0259 172.19.33.7:7001@17001 slave 19a2c81b7f489bec35eed474ae8e1ad787327db6 0 1569404163567 4 connected 89206df4f41465bce81f44e25e5fdfa8566424b8 172.19.42.44:7001@17001 slave ff3e4300bec02ed4bd1be9af5d83a5b44249c2b2 0 1569404163000 5 connected 20ab4b30f3d6d25045909c6c33ab70feb635061c 172.19.45.201:7001@17001 master - 0 1569404162000 7 connected 5461-10922 19a2c81b7f489bec35eed474ae8e1ad787327db6 172.19.45.201:7000@17000 myself,master - 0 1569404161000 3 connected 10923-16383
It’s not done yet, further we can explore around having a single endpoint to point from the application. I will am currently working on that and soon will come up with the solution.
Apart from this monitoring the Redis Cluster will also be a major aspect to look forward.
Till then get your hands dirty playing around the Redis Cluster setup and failover.
