Trigger Jenkins Job using AWS Lambda triggered by S3 Event

The problem that we faced:

There was a cron scheduled in our environment at a particular time which used to run at 8AM. This cron read data from the s3 bucket and used to succeed but failed when there were no objects present.

Problem this Integration solves:

• Eliminates the need of keeping a scheduler in the system. Lambda will work as a Scheduler.
• No manual intervention will be required in case the file from one service is delayed by a minute or an hour due to any reason.
• Data exchange and processing between teams become more efficient and less error-prone.
• Eliminates the need of checking the presence of files on S3. It all gets automated.

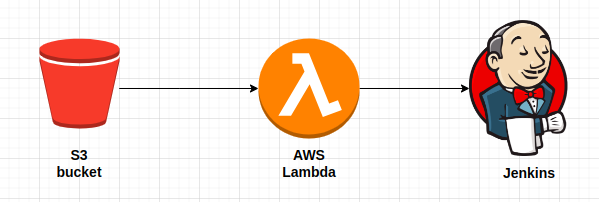

Workflow:

1. The object is uploaded to S3
2. S3 event triggers a Lambda function
3. Lambda starts Jenkins job using Jenkins API

Steps:

1. Generate API Token Token:

We need to generate an API token for the user which we will use to authenticate the API call to trigger the job

a). Go to People >> User-Name >> Configure >> Add New Token under API Token >> Generate >> Save

Now we need to add the authentication token to the job we want to trigger remotely.

Note: API token is equal to the Authentication token

b). Go to job >> Configure >> Trigger builds remotely under Build Triggers >> add API Token to Authentication Token Field >> Save

With this information, you can now create a URL that looks like this:

http://user-name:<api_token>@jenkins-web-url.com/job/<JobName>/build?token=<authentication_token>

• <JobName> should be replaced with the Jenkins project name.
• <api_token> should be replaced with API Token we created for the user.
• <authentication_token> should be replaced with the API Token. If we want to trigger a parameterized job, replace the build with Buildwithparameters in the URL.

2. Create S3 Bucket:

I have created an empty bucket named s3-test-Jenkins. This bucket will trigger the Lambda script if any file or folder is uploaded in this bucket.

3. Create Lambda Function:

I have created a lambda function using the below steps:

a). Go to Lambda >> create Function >> select Author From Scratch >>give function name >> select Python3.7 Runtime >> Create Function

Add the below code to the lambda function that was created in the above steps:

import requests
import os

USERNAME = os.environ['USERNAME']
JENKINS_URL = os.environ['JENKINS_URL']
API_TOKEN = os.environ['API_TOKEN']
AUTH_TOKEN = os.environ['AUTH_TOKEN']


def lambda_handler(event, context):
   try:
       url = "http://{}:{}@{}/build?token={}".format(USERNAME, API_TOKEN, JENKINS_URL, AUTH_TOKEN)
       print(url)
       response = requests.post(url)
       if response.status_code != 201:
          print(response.status_code)
   except Exception as err:
      print(err.args[0])

These are the environment variables that you need to add the lambda function:

b). Go to configuration >> Environment variables >> Add Environment Variable >> Save

Add trigger into lambda function:

c). Function >> select Add trigger >>Trigger configuration >> select s3 >> Bucket Name >> Event type >>Add

Conclusion:

In this blog, we have seen how in a few easy steps we can trigger AWS Lambda through an S3 event and trigger Jenkins through AWS Lambda. I hope this blog will help you if any such scenario comes up. Happy learning!
